Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

Place of Origin : China

Model Number : 1050

Price : USD6800-10500/SET

Packaging Details : Naked and fastened in the container We have container loading plan in advance to make full use of t

Delivery Time : within 30 days after deposit

Payment Terms : T/T

Supply Ability : 20 SET/ MONTH

MOQ : 1 SET

Contact Now

1050 Popular In India Glazed Tile Roll Making Machine

1050 Glazed tile roll forming mchine

1.Steady performance
2.Longtime usage
3.Easy operation and machine

Working process

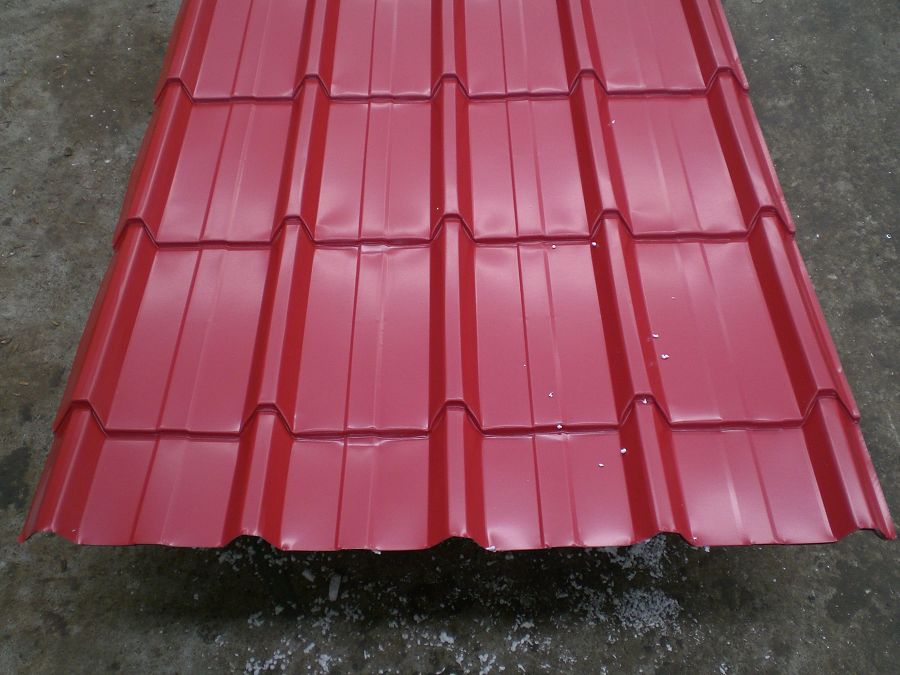

Tile Drawing

Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

Machine parameter

Material Width			1000/1200mm
Effctive width			1050mm/840mm
Thicknes			0.3-0.6mm
Size			6500mm1400mm1300mm
Main Frame			300H steel
Chain			0.6 inch
Weight			about 3.5 tons
Shaft			Φ70,45#steel
Material of roller			45#steel
Number of rollers			1050Glazed:11 stand
Main motor power			3.0kw
Hydraulic station			3.0kw
Control system			PLC computer controller

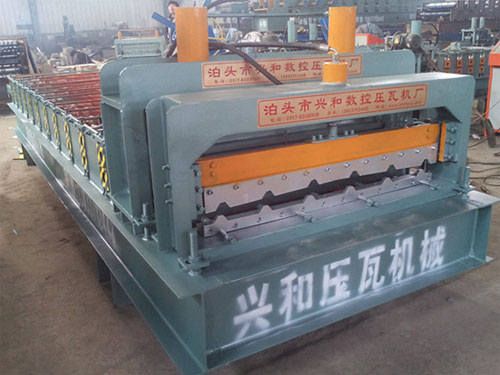

Machine shows

Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

Company shows

Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

Our Services

1.)we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country

2.)You can send your men to our factory. we will teach them how to operate the machine without training charges

3. )Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine.

Then we can get a video call,and teach you on-line how to operate the machine.

4.)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support !
